Stator - Magneto Coil, CG8, 5 Wire - 30A9361 - PBC2415F1
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day.
In Stock
$56.93

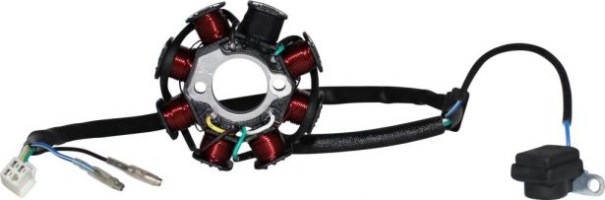

Stator / Magneto Coil - CG8. 5 wire, one 4 pin 3 wire male plug and two male push pin wires. Approximate dimensions:
- Outside Diameter: 88mm
- Centre Hole Diameter: 29.1mm
- Mounting Hole (centre-centre): 40.1mm
- Bolt Hole: 6.1mm
- Harness Length: 60cm
- Pickup Wire Length: 15cm
- Pickup Hole (centre-centre): 35mm
